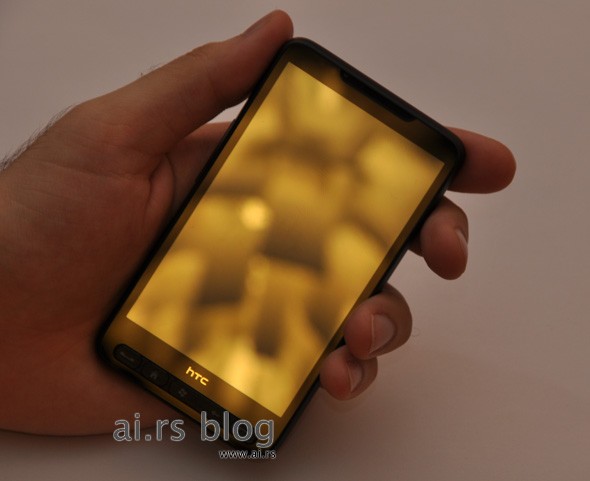

HTC Leo should be the phone worth waiting for. Capacitive 4.3-inch screen, 1GHz Processors and now, it has a set of data to prove that it has all what it takes to be the best Windows Mobile phone from HTC. The benchmark is awesome. Totally out of the chart (based on figure, of course) as compared to HTC Touch HD. Results after the break.
The data is from WMpoweruser. I think they have been “engadgeted” and their website is now crawling with people trying to see the results. I shall “cut and paste” their results here. In blue are those results from WMPoweruser.
Movie watchers should be happy with this CorePlayer result:
Matrix Trailers Results : RL_XQ_640×480_1500_128.avi 1.62 Mb/sec
| HTC Touch HD | HTC Leo | |
| Bit rate achieved | 1.32 Mb/sec | 3.77 Mb/sec |
| % frame rate | 82% | 233% |
There is not a single 3D benchmark which is less then 300% more than the HTC Touch HD, making the device is clear successor to its large screened ancestor.
| HTC Touch HD | HTC Leo | Improvement | |
| alpha texture (128×256 rgba) | 30340 kPixels/s | 140125 kPixels/s | 362% |
| torus (3k triangles) one light | 6272 kPixels/s | 120564 kPixels/s | 1822% |
| color blending | 31498 kPixels/s | 152825 kPixels/s | 385% |
| sub texture (128×128 15×15) | 10762 kPixels/s | 112983 kPixels/s | 950% |
Even in terms of the OpenGL standard supported, the Snapdragon powered device is head and shoulders above the HTC Touch HD.
| HTC Touch HD | HTC Leo |
| OpengGL ES info | OpengGL ES info |
| ——————————– | ——————————– |
| Vendor | Vendor |
| QUALCOMM, Inc. | Advanced Micro Devices, Inc. |
| Version | Version |
| OpenGL ES-CM 1.0 | OpenGL ES-CM 1.1 |
| Renderer | Renderer |
| Q3Dimension MSM7500W 01.02.03 0 5.1.2 | AMD Z430 |
| Extensions | Extensions |
| GL_OES_byte_coordinates | GL_AMD_compressed_3DC _texture |
| GL_OES_read_format | GL_AMD_compressed_ATC _texture |
| GL_OES_fixed_point | GL_ARB_texture_env _combine |
| GL_OES_single_precision_commands | GL_ARB_texture_env_dot3 |
| GL_OES_compressed_paletted_texture | GL_ARB_texture_mirrored _repeat |
| GL_OES_matrix_palette | GL_ARB_vertex_buffer_object |
| GL_OES_point_sprite | GL_ATI_compressed_texture _atitc |
| GL_OES_point_size_array | GL_ATI_texture_compression _atitc |
| GL_ARB_vertex_buffer_object | GL_EXT_blend_equation _separate |
| GL_ARB_texture_env_combine | GL_EXT_blend_func_separate |
| GL_ARB_texture_env_dot3 | GL_EXT_blend_minmax |
| GL_ARB_texture_env_crossbar | GL_EXT_blend_subtract |
| GL_ARB_texture_mirrored_repeat | GL_EXT_stencil_wrap |
| GL_EXT_stencil_wrap | GL_OES_blend_equation _separate |
| GL_EXT_blend_minmax | GL_OES_blend_func_separate |
| GL_EXT_blend_subtract | GL_OES_blend_subtract |
| GL_EXT_blend_func_separate | GL_OES_compressed_ETC1 _RGB8_texture |
| GL_EXT_blend_equation_separate | GL_OES_compressed_paletted _texture |
| GL_ATI_texture_compression_atitc | GL_OES_draw_texture |
| GL_ATI_extended_texture | GL_OES_extended_matrix _palette |
| _coordinate_data_formats | GL_OES_framebuffer_object |
| GL_OES_draw_texture | GL_OES_matrix_palette |
| GL_OES_point_size_array | |
| GL_OES_point_sprite | |
| GL_OES_read_format | |
| GL_OES_stencil_wrap | |
| GL_OES_texture_cube_map | |
| GL_OES_texture_env_crossbar | |
| GL_OES_texture_mirrored _repeat |
Below is the SPB Benchmarks. Again some great improvements in CPU performance, but also interestingly file system performance is clearly improved.
| HTC Touch HD | HTC Leo | |
| SPB Benchmark Index | 1040.77 | 1597.12 |
| CPU index | 2272.2 | 6494.18 |
| File system Index | 502.96 | 747.02 |
| Graphics Index | 4002.07 | 1988.03 |
| HTC Touch HD | HTC Leo | Improvement | |
| write 1mb | 594 | 363.9 | 63% |
| read 1mb | 45 | 9 | 400% |
| copy 1mb | 668 | 470.3 | 42% |
| write 10*100 | 4410 | 1931.1 | 128% |
| read 10*100 | 229 | 103.8 | 121% |
| copy 10*100 | 4213 | 2175 | 94% |
| dir. List | 1376 | 273.7 | 403% |
| internal db read | 821 | 178.1 | 361% |
| graphics: ddb | 13 | 7.29 | 78% |
| graphics: dib | 36 | 11.16 | 223% |
| graphics: gapi | 6 | 4.575 | 31% |
| compress 1ms | 2924 | 719.9 | 306% |
| decompress | 415 | 146.5 | 183% |
| arkaball | 9 | 5.598 | 61% |
| cpu mflops | 3463 | 1385.2 | 150% |
| cpu mops | 1003 | 379.2 | 165% |
| cpu mwips | 7110 | 2793.6 | 155% |
| copy 1mb memcpy | 8 | 3.226 | 148% |
Interestingly the SPB software reveals the smartphone to be code names the HTC HD2 T8585
Really looking forward to the release of this phone. 🙂
